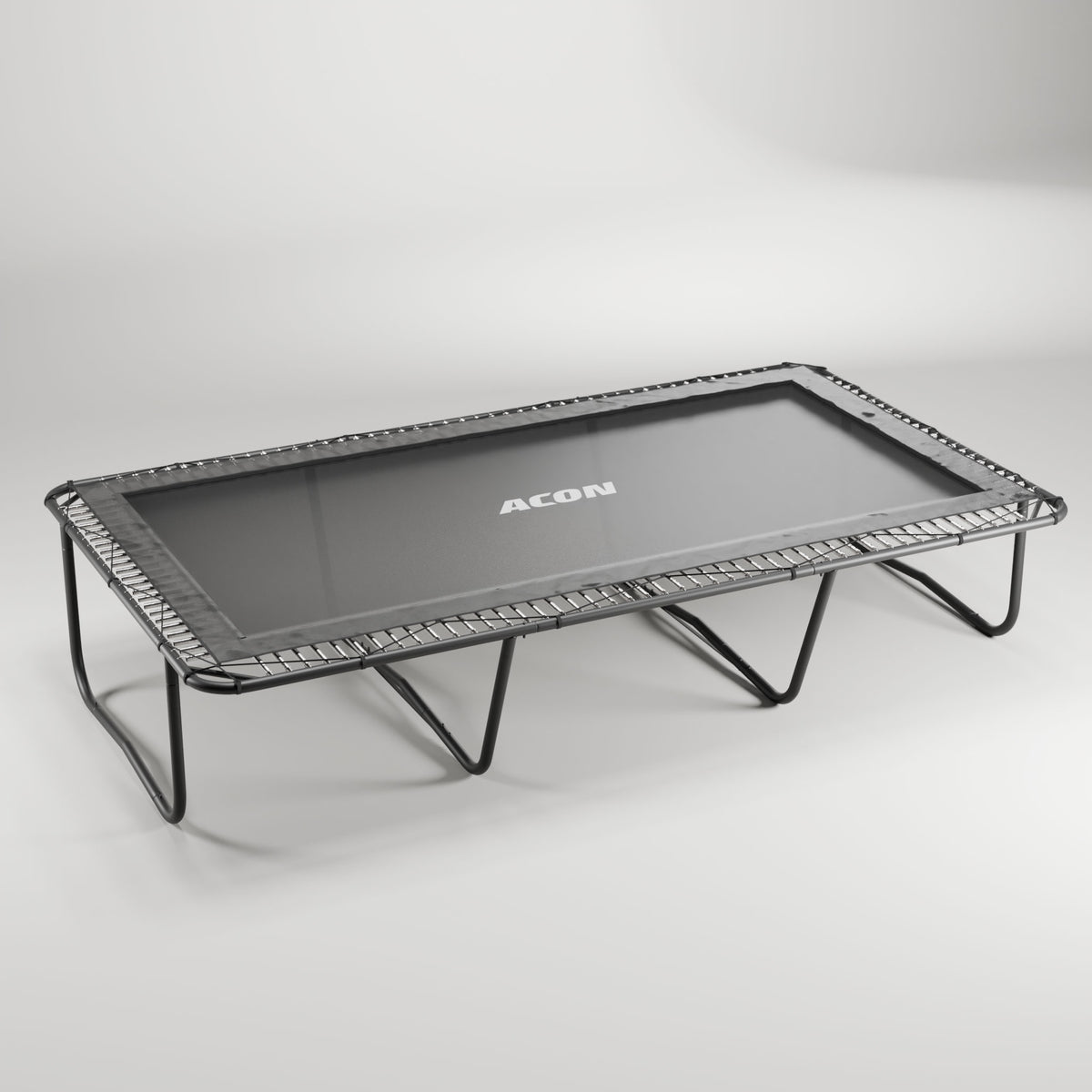

Heavy Duty Frame
As we all know, the forces that a trampoline frame is constantly subject to are immense. The new, reinforced Heavy Duty frame of the 16 Sport HD provides improved structural rigidity to combat these forces. We believe that the most important characteristics of a trampoline frame are safety, durability and rigidity. The HD makes no compromises and ensures that no momentum is lost in jumps.
Synergy Design+
Along with the springs and the mat of a trampoline, the frame is one of the most important factors in creating superb bounce characteristics. Synergy Design+ relies on locating the critical leverage points of the frame and utilizing these to amplify the bounce created by the actual springs of the trampoline. Meticulous ACON Product Development ensures that the frame remains rigid and safe, but that it also enhances the bounce provided by the springs and the mat.
Many trampolines have a lot of springs, but what is not widely understood, is that the design of the trampoline has to complement the springs for them to reach their full potential. Witness a bounce that you’ve never come across on an outdoor trampoline!
Stealthy all-black design
There is a reason for all tuxedos being black. It just is classy. Period. After fresh new paint, we rethought the logos and gave the trampoline mat some stylish blue accents on the edges. We designed something that we believe is timeless.

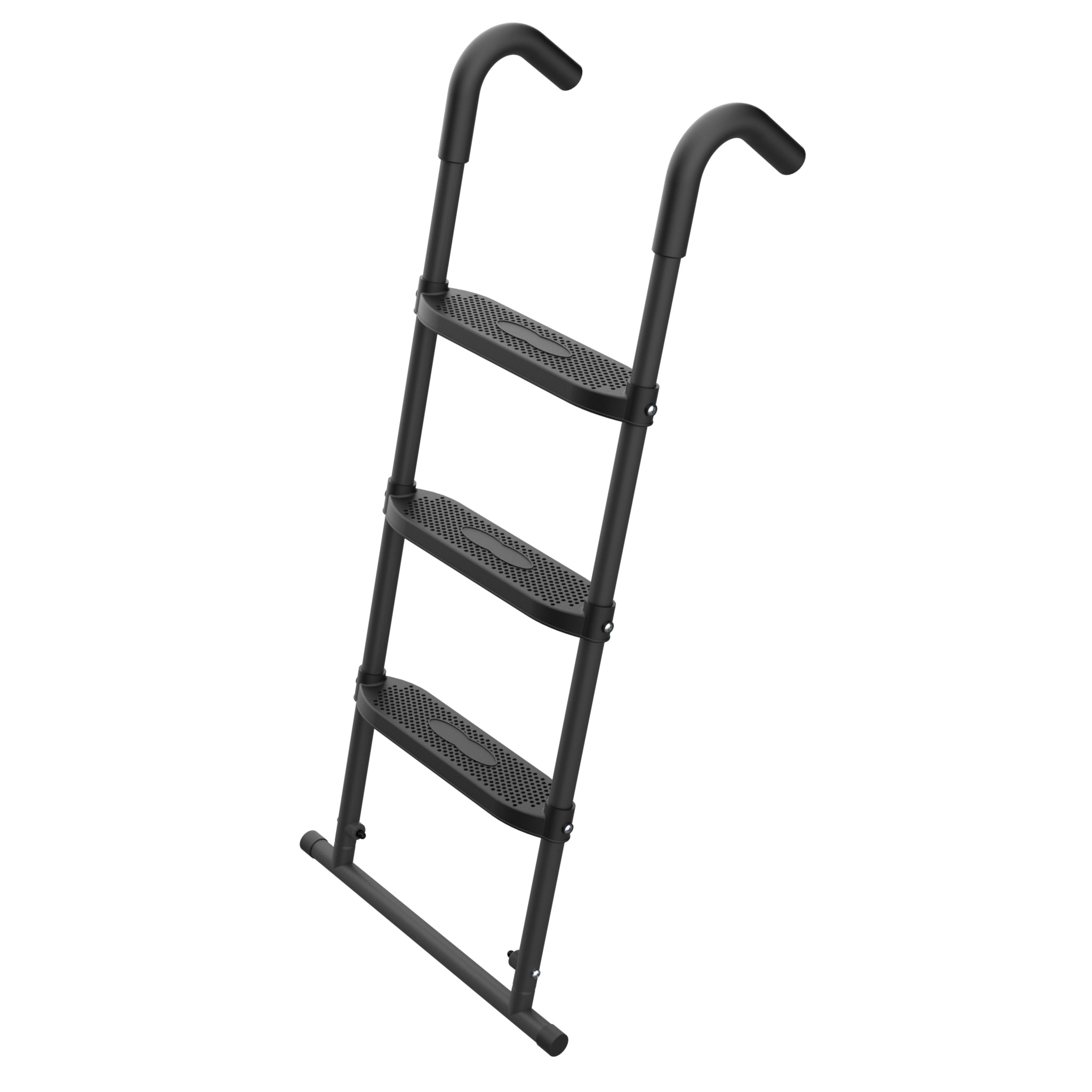

ACON Air 16 Sport HD Trampoline includes ladder and needed assembling tools. All replacement parts are kept in stock.
The quality of ACON Air 16 Sport consists of top of the market components:
- Optimized spring & mat dynamics!
- Renewed Heavy Duty frame structure backed by a 5 year warranty!
- New & stealthy all-black design!
- Strong galvanized steel frame pipes, backed by a 5 year warranty!
- cross sewn polypropylene UV-treated mat, backed by a 5 year warranty!
- 140 heavy gauge 10 inch springs. Spring pull tool Included.
- 1.4 inches extra thick rubber coated spring pad.
Meets or exceeds the standards:
-
Product Specs
-
Content
ACON Air 16 Sport HD Trampoline (frame, mat, springs, safety pad)
* ACON Air 16 Sport Ladder
* Needed assembling tools
* Spring Pull Tool
* Graphical instructions -
Frame
Heavy Duty -frame
* Galvanized steel inside and out
* Black powder coated
* Frame tube diameter 2.4 in
* Tube thickness .10 in -
Mat
* Size 171x86in
* Cross-sewn polypropylene
* 10 row stitching
* UV-treated -
Max load
No single user weight limit -
Other info
For year-round use -
Package size
Package1: 72" x 29" x 7", 204 lb
Package2: 72" x 29" x 7", 219 lb -
Padding
Thickness 1.4 in
* Thick vinyl cover
* Width 15.5 in
* UV-treated -
Product weight
400 lb -
Size
16.5' x 9.3'
Frame height 42 in -

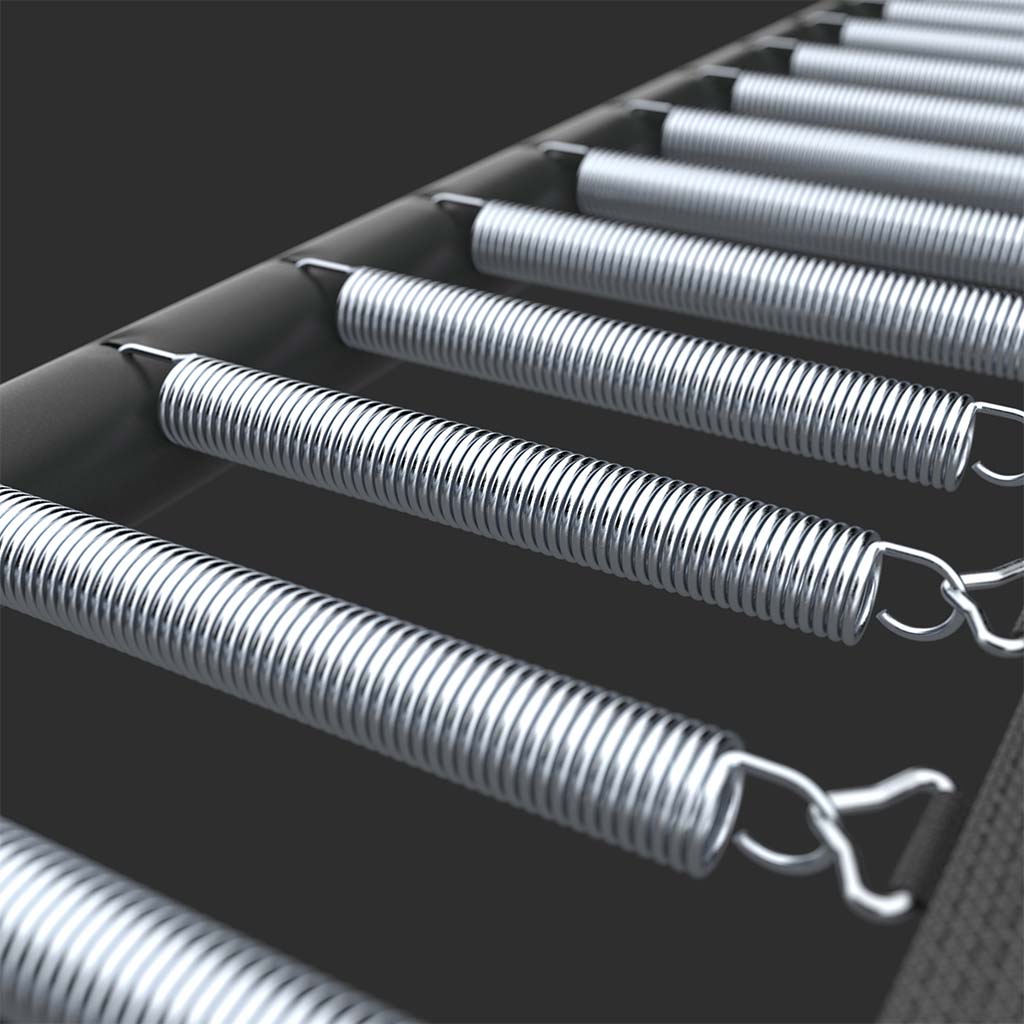

Springs
Galvanized steel
* 140 pcs
* Length 10 in
* Spring Pull Tool Included -
Warranty
10 years for the frame
5 years for the springs
5 years for the jumping mat
2 years for other mat components
2 years for the safety pad
1 year for the ladder
-
-
Videos
How to assemble ACON Air 16 Sport HD
ACON Customer Stories
Hear from actual customers about their experiences with ACON Air trampoline.
-
Trampoline Comparison Matrix
Model Air 1.8 6ft
Air 10ft
Air 12ft
Air 14ft
Air 15ft
Air 16 Sport HD
Measurements and usage Weight limit 220 lb 265 lb No single user weight limit No single user weight limit No single user weight limit No single user weight limit For year round use ✔ ✔ ✔ ✔ ✔ ✔ Diameter 6 ft 10 ft 12 ft 14 ft 15 ft 16.5 x 9.3 ft Height 18 in 30 in 35 in 35 in 35 in 42 in Weight 61 lb 108 lb 170 lb 205 lb 230 lb 400 lb Springs Amount 48 qty 64 qty 80 qty 96 qty 110 qty 140 qty Length 7 in 7 in 8.5 in 8.5 in 8.5 in 10 in Frame Material Black powder coated, Galvanized Steel inside and out ➜ does not rust Black powder coated, Galvanized Steel inside and out ➜ does not rust Black powder coated, Galvanized Steel inside and out ➜ does not rust Galvanized Steel inside and out ➜ does not rust Black powder coated, Galvanized Steel inside and out ➜ does not rust Black powder coated, Galvanized Steel inside and out ➜ does not rust Frame Tube Diameter 1.5 in 1.5 in 1.65 in 1.9 in 1.9 in 2.4 in Frame Tube Thickness .06 in .06 in .08 in .08 in .08 in .10 in Padding Material Thick UV-treated vinyl cover Thick UV-treated vinyl cover Thick UV-treated vinyl cover Thick UV-treated vinyl cover Thick UV-treated vinyl cover Thick UV-treated vinyl cover Thickness 1.2 in 1.2 ín 1.2 in 1.2 in 1.2 in 1.4 in Width 11.5 in 14 in 14.5 in 14.5 in 14.5 in 15.5 in Mat Material UV-treated cross-sewn polypropylene UV-treated cross-sewn polypropylene UV-treated cross-sewn polypropylene UV-treated cross-sewn polypropylene UV-treated cross-sewn polypropylene UV-treated cross-sewn polypropylene Mat Attachment Ring Stitch 8 row stitching ➜ durable 10 row stitching ➜ durable 10 row stitching ➜ durable 10 row stitching ➜ durable 10 row stitching ➜ durable 10 row stitching ➜ durable Warranty Frame 10 years 10 years 10 years 10 years 10 years 10 years Springs 2 years 2 years 5 years 5 years 5 years 5 years Mat 5 years 5 years 5 years 5 years 5 years 5 years Other mat components 2 years 2 years 2 years 2 years 2 years 2 years Safety pad 2 years 2 years 2 years 2 years 2 years 2 years Replacement Parts Availability 100% 100% 100% 100% 100% 100% Meets or exceeds the standards ASTM ✔ ✔ ✔ ✔ ✔ CE ✔ ✔ ✔ ✔ ✔ ACON Air 1.8 6ft
Measurements and usage Weight limit 220 lb For year round use ✔ Diameter 6 ft Height 18 in Weight 61 lb Springs Amount 48 qty Length 7 in Frame Material Black powder coated, Galvanized Steel inside and out ➜ does not rust Frame Tube Diameter 1.5 in Frame Tube Thickness .06 in Padding Material Thick UV-treated vinyl cover Thickness 1.2 in Width 11.5 in Mat Material UV-treated cross-sewn polypropylene Mat Attachment Ring Stitch 8 row stitching ➜ durable Warranty Frame 10 years Springs 2 years Mat 5 years Other mat components 2 years Safety Pad 2 years Replacement Parts Availability 100% Meets or exceeds the standards ASTM CE ACON Air 10ft
Measurements and usage Weight limit 265 lb For year round use ✔ Diameter 10 ft Height 30 in Weight 108 lb Springs Amount 64 qty Length 7 in Frame Material Black powder coated, Galvanized Steel inside and out ➜ does not rust Frame Tube Diameter 1.5 in Frame Tube Thickness .06 in Padding Material Thick UV-treated vinyl cover Thickness 1.2 in Width 14 in Mat Material UV-treated cross-sewn polypropylene Mat Attachment Ring Stitch 10 row stitching ➜ durable Warranty Frame 10 years Springs 2 years Mat 5 years Other mat components 2 years Safety Pad 2 years Replacement Parts Availability 100% Meets or exceeds the standards ASTM ✔ CE ✔ ACON Air 12ft
Measurements and usage Weight limit No single user weight limit For year round use ✔ Diameter 12 ft Height 35 in Weight 170 lb Springs Amount 80 qty Length 8.5 in Frame Material Black powder coated, Galvanized Steel inside and out ➜ does not rust Frame Tube Diameter 1.65 in Frame Tube Thickness .08 in Padding Material Thick UV-treated vinyl cover Thickness 1.2 in Width 14.5 in Mat Material UV-treated cross-sewn polypropylene Mat Attachment Ring Stitch 10 row stitching ➜ durable Warranty Frame 10 years Springs 5 years Mat 5 years Other mat components 2 years Safety Pad 2 years Replacement Parts Availability 100% Meets or exceeds the standards ASTM ✔ CE ✔ ACON Air 14ft
Measurements and usage Weight limit No single user weight limit For year round use ✔ Diameter 14 ft Height 35 in Weight 205 lb Springs Amount 96 qty Length 8.5 in Frame Material Galvanized Steel inside and out ➜ does not rust Frame Tube Diameter 1.9 in Frame Tube Thickness .08 in Padding Material Thick UV-treated vinyl cover Thickness 1.2 in Width 14.5 in Mat Material UV-treated cross-sewn polypropylene Mat Attachment Ring Stitch 10 row stitching ➜ durable Warranty Frame 10 years Springs 5 years Mat 5 years Other mat components 2 years Safety Pad 2 years Replacement Parts Availability 100% Meets or exceeds the standards ASTM ✔ CE ✔ ACON Air 15ft
Measurements and usage Weight limit No single user weight limit For year round use ✔ Diameter 15 ft Height 35 in Weight 230 lb Springs Amount 110 qty Length 8.5 in Frame Material Black powder coated, Galvanized Steel inside and out ➜ does not rust Frame Tube Diameter 1.9 in Frame Tube Thickness .08 in Padding Material Thick UV-treated vinyl cover Thickness 1.2 in Width 14.5 in Mat Material UV-treated cross-sewn polypropylene Mat Attachment Ring Stitch 10 row stitching ➜ durable Warranty Frame 10 years Springs 5 years Mat 5 years Other mat components 2 years Safety Pad 2 years Replacement Parts Availability 100% Meets or exceeds the standards ASTM ✔ CE ✔ ACON Air 16 Sport HD
Measurements and usage Weight limit No single user weight limit For year round use ✔ Size 16.5 x 9.3 ft Height 42 in Weight 400 lb Springs Amount 140 qty Length 10 in Frame Material Black powder coated, Galvanized Steel inside and out ➜ does not rust Frame Tube Diameter 2.4 in Frame Tube Thickness .10 in Padding Material Thick UV-treated vinyl cover Thickness 1.4 in Width 15.5 in Mat Material UV-treated cross-sewn polypropylene Mat Attachment Ring Stitch 10 row stitching ➜ durable Warranty Frame 10 years Springs 5 years Mat 5 years Other mat components 2 years Safety Pad 2 years Replacement Parts Availability 100% Meets or exceeds the standards ASTM ✔ CE ✔
